Edge Banding Machine

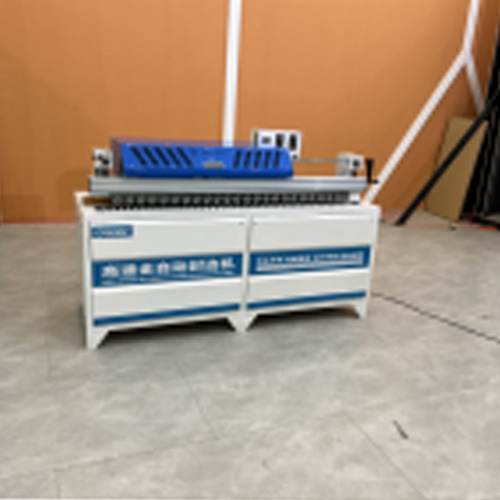

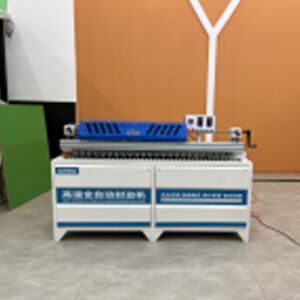

DW902 High Speed Automatic Edge Banding Machine
DW902 High Speed Automatic Edge Banding Machine
Product Category：
The High-Speed Automatic Edge Banding Machine features a robust and stable design with an innovative automatic head and tall structure. It offers high-speed sealing, double-sided gluing, and precise temperature control through an intelligent system. The independent console ensures easy operation, while the double-wheel design enhances performance and durability. Solid round rod guides and silicone conveyor belts extend motor life and protect boards from damage. The dual-speed governor allows smoother, burr-free operation, making edge banding faster, more efficient, and reliable.
DW902 High Speed Automatic Edge Banding Machine Overview
The DW902 High Speed Automatic Edge Banding Machine is engineered for high-efficiency, precise woodworking, delivering professional-quality edge banding with minimal effort. Its robust and stable structure, combined with an innovative automatic head and tall frame, ensures consistent performance across a wide range of board sizes and edge banding applications. Designed for both small workshops and large-scale production, the DW902 guarantees smooth, burr-free edges with every use.
Key Features of DW902 High Speed Automatic Edge Banding Machine
- High-Speed Sealing & Double-Sided Gluing: Provides fast sealing and double-sided gluing for efficient edge banding.
- Intelligent Temperature Control: Maintains stable heat levels for consistent bonding without damaging boards.
- Independent Console & Easy Operation: User-friendly control panel allows simple operation and monitoring.
- Durable Double-Wheel Design: Enhances machine stability and performance during operation.

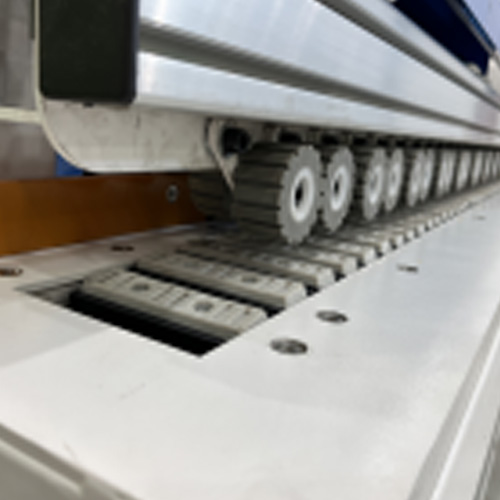

- Premium Guides & Conveyor Belts: Solid round rod guides and silicone conveyor belts extend motor life and protect boards from damage.
- Smooth, Burr-Free Results: Dual-speed governor ensures smooth board feeding and clean, precise edges.
- High-Power Motor: Equipped with a 4800W motor for continuous edge banding performance.
- Compact & Accessible Design: Dimensions of 175 × 87 × 112 cm and weight of 240kg make it suitable for workshop environments while allowing easy maintenance.
| Item | Specification |
| Product Number | DW-902 0-50MM |
| Rated Power | 4800 W |
| Voltage | 220V |
| Edge Band Thickness | 0.3–3 mm |
| Equipment Dimensions | 175 × 87 × 112 cm |
| Equipment Weight | 240 KG |
| Edge Banding Type | Straight-edge banding |
| Edge Band Height | 0–50 MM |
The DW902 High Speed Automatic Edge Banding Machine is ideal for professional workshops and manufacturers seeking high-speed, precise, and reliable edge banding solutions.
Automatic head and tail / stable performance / automatic sealing / novel design / high-speed sealing / double-sided glue / independent console / intelligent temperature control / double wheel design.
