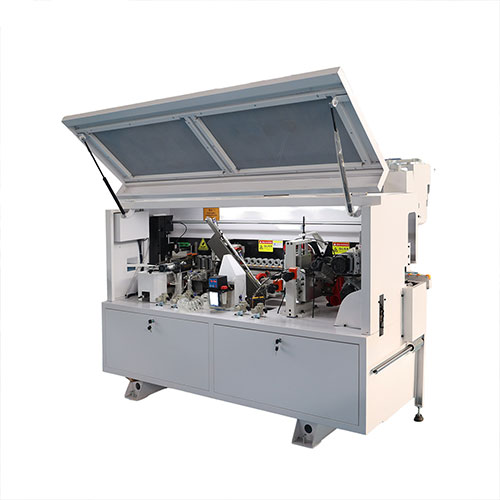

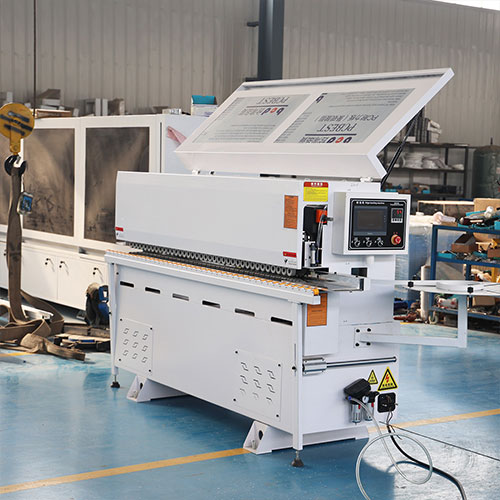

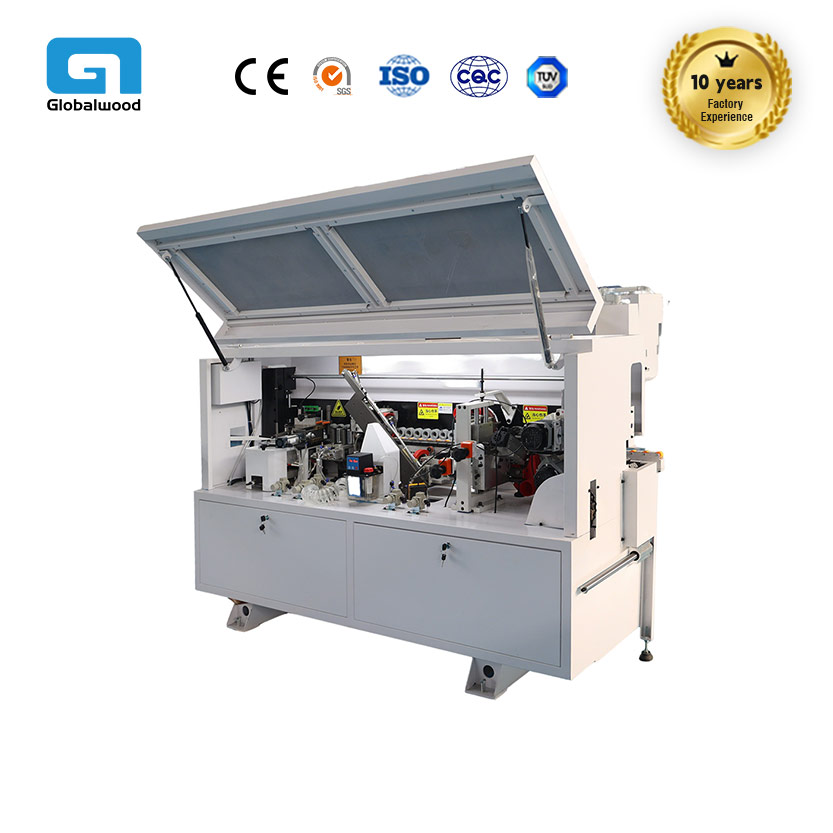

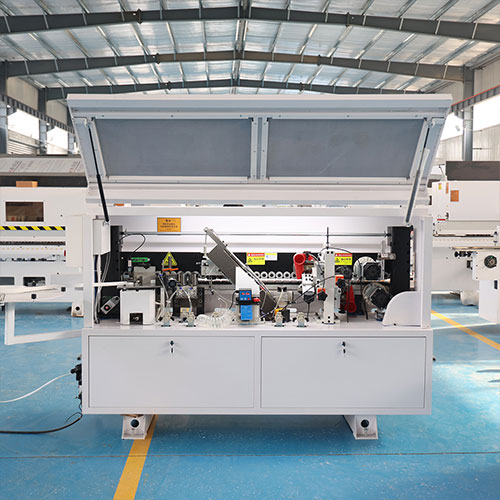

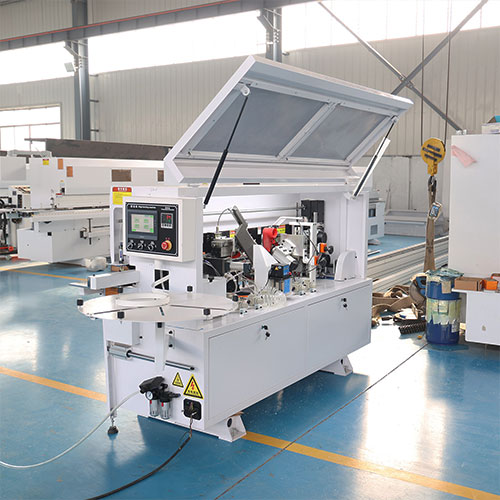

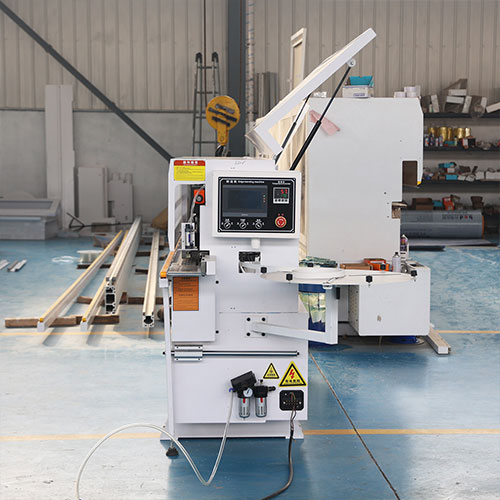

Edge Banding Machine
ERS10
ERS10
Product Category：
| Item | Details |
|---|---|
| Size | 2280*800*1370 |
| Product Introduction | 1. The conveyor belt guide rail is made of Zhongwang high-strength aluminum alloy, with wear-resistant and smooth bearing steel of 60 degrees grade without deformation
2. The conveying motor adopts Qiaobang brand with an output shaft of 32 mm, which has stronger torsion, pure copper national standard, and stable speed. 3. All high-speed motors adopt the well-known and reliable brand Hongtong Motor with export configuration 4. The trimming guide rail adopts Taiwan HIWIN brand, which is stable and durable 5. Pneumatic system: Taiwan AIRTAC solenoid valve, Taiwan AIRTAC trimming cylinder with magnetic ring induction switch, YIRI oil-water separator 6. The machine is equipped with a computer oil injection pump to inject oil to the trimming track and conveyor in real time for more stable operation and maintenance-free. Display screen touch screen The frequency converter adopts the well-known brand Shenzhen Wanxin with national warranty. 7. The system adopts PLC touch screen system. Integrated four functions: glue pot, trimming (head and tail), edge trimming, polishing |
| Applicable Board Thickness | 12-50 |
| Power | Glue tank heating power: 1.5Kw Board preheating power: 0.3Kw
Glue tank transmission power: 0.55Kw X1 Conveyor belt motor power: 750w Trimming motor power: 0.37Kw2 12000r/min.200Hz Fine trimming motor power: 0.75Kw2 12000r/min.200Hz Polishing motor power: 0.18Kw*2 |
| Feeding System Type | Manual Feeding, Automatic Edge Banding |
| Edge Banding Speed | 15m/min |
| Glue Pot Capacity | 4000ml |
| Air Pressure Requirement | 0.6MPa-0.8Mpa |
| Power Supply Specification | Single-phase 220V (modifiable) |
| Glue Type | VEA Granule Glue |
| Standard Color | White |
| Customizable Color | YES |
| Power | 5.5kw |
Related Products
-
×

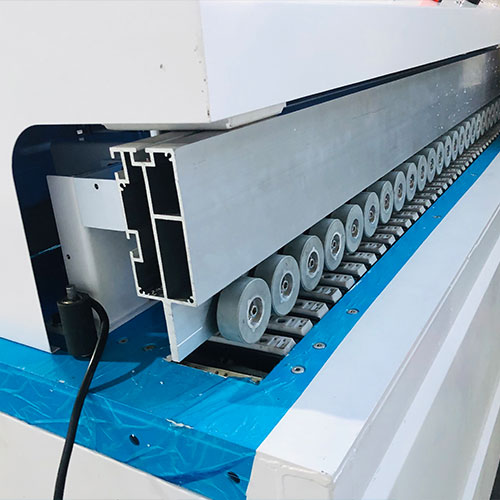

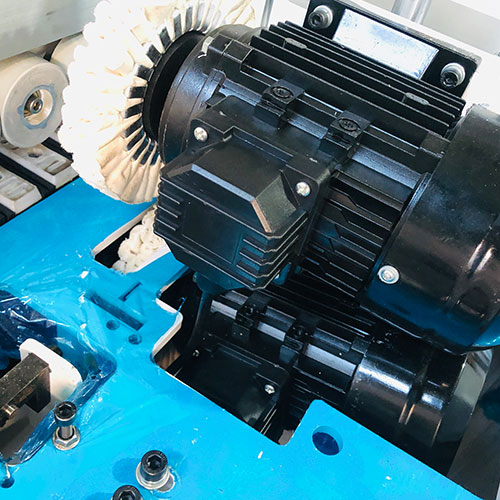

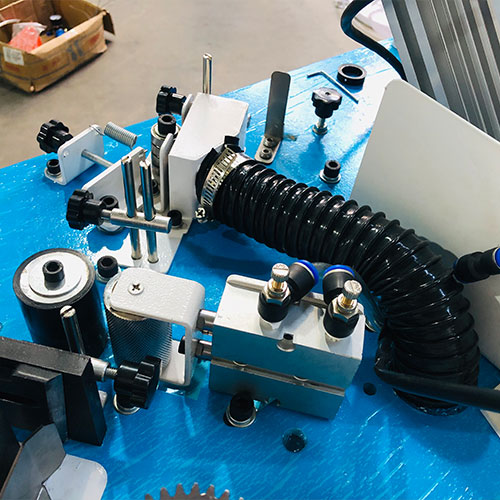

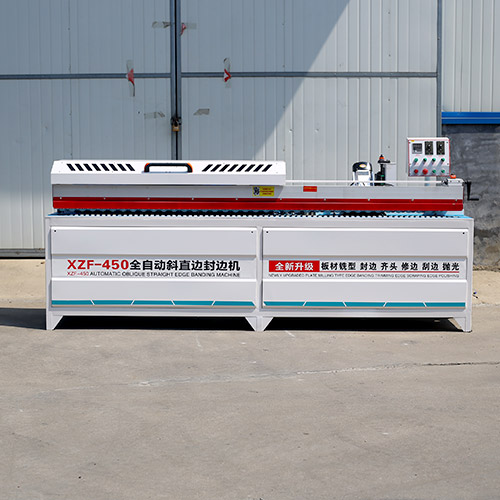

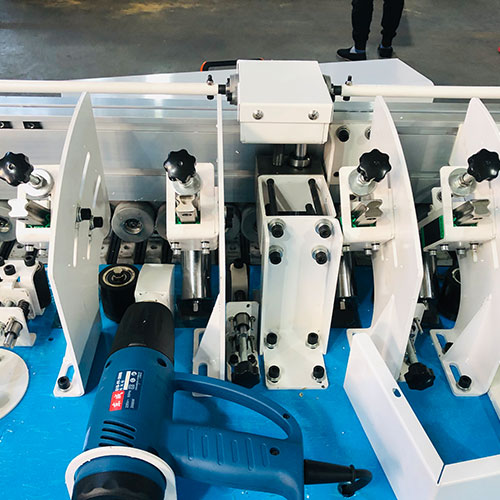

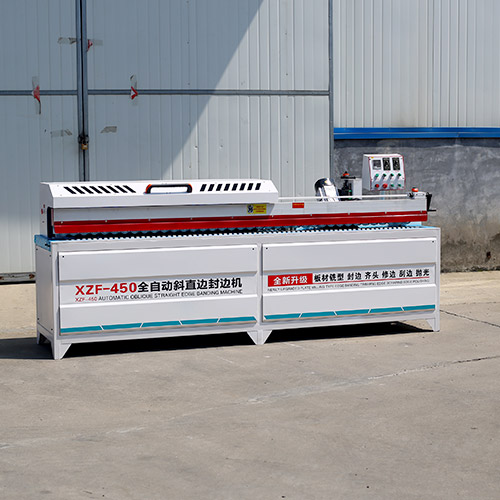

XZF450 Full-Automatic Bevel and Straight Edge Banding
Open full product pageXZF450 Full-Automatic Bevel and Straight Edge Banding machine focuses on stable performance and flexible adaptation to diverse processing needs. Its large automatic pressure beam adopts a robust structural design, ensuring firm clamping of panels during operation and avoiding deviations that affect edge banding accuracy. Equipped with a high-power pre-milling component, it delivers strong cutting force to process panel edges smoothly—effectively preventing edge breakage even for harder materials.
In terms of angle adjustment, it supports free switching between 30°, 45°, and 60°, easily matching the edge banding requirements of different furniture or decorative panels. The contoured pressure wheel fits the panel surface more closely, further enhancing the stability of the banding process and ensuring tight bonding between the edge strip and the panel. Additionally, the upper and lower dual dust collection design efficiently captures debris generated during processing, keeping the work area clean and reducing post-operation cleaning efforts.
-
×

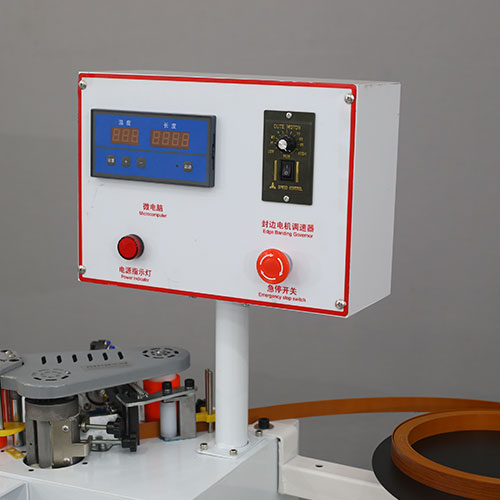

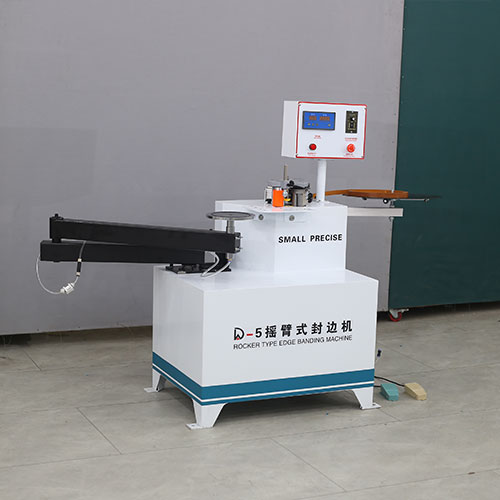

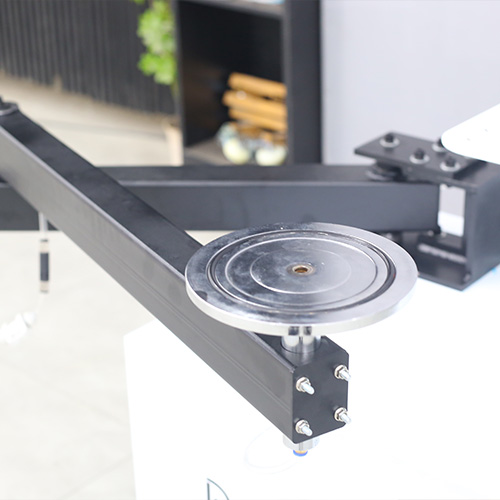

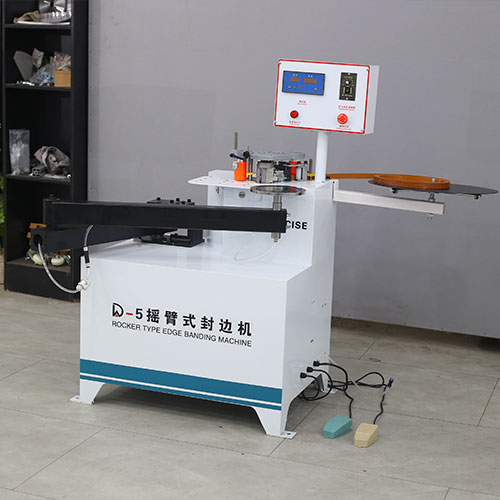

D5 Curved Straight Line Rocker Edge Banding Machine
Open full product pageThe D5 Curved Straight Line Rocker Edge Banding Machine is a classic multi-functional semi-automatic edge banding equipment specifically designed for panel edge banding. Its core feature lies in the unique manual beam profiling system, which allows the operator to precisely control the edge banding head via a handle to follow the edges of panels of any shape. The column and beam are constructed from 8mm thick steel plates, ensuring robust durability and adjustable length. The beam can rotate around the column, hydraulically driven for smooth operation, with adjustable edge banding width and speed, plus acceleration and counting functions. This machine is easy to operate and delivers excellent edge banding results, making it an ideal choice for panel processing.
-
×

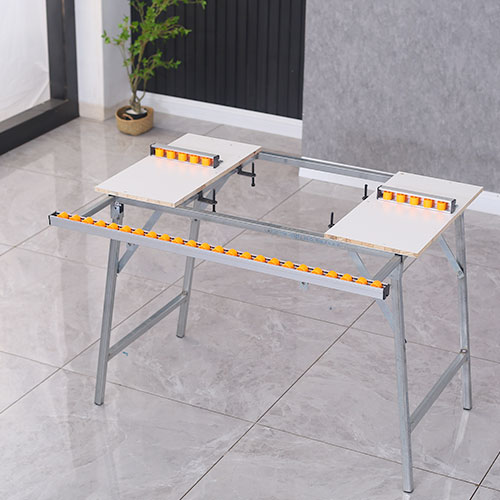

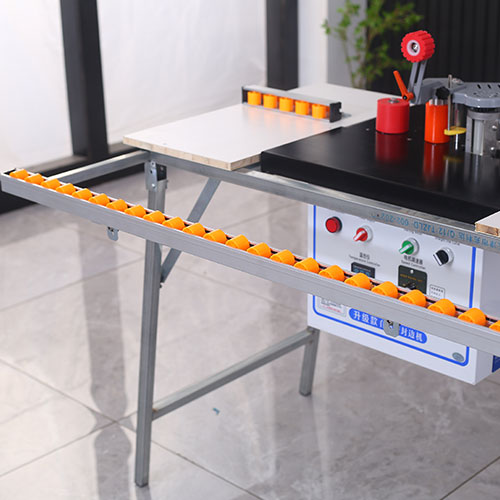

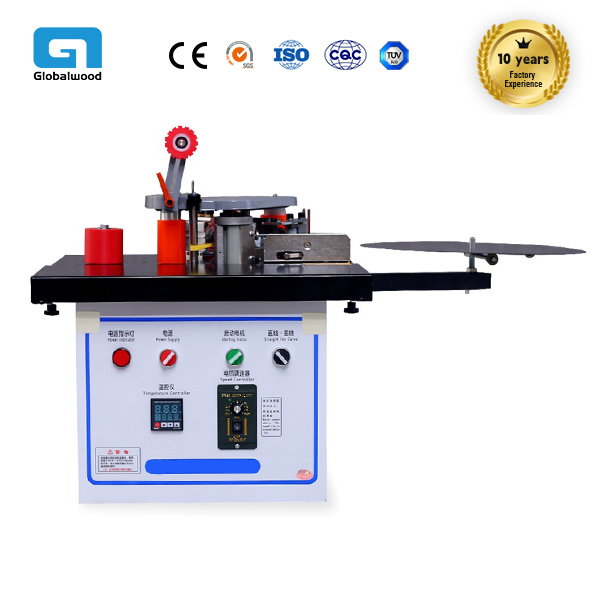

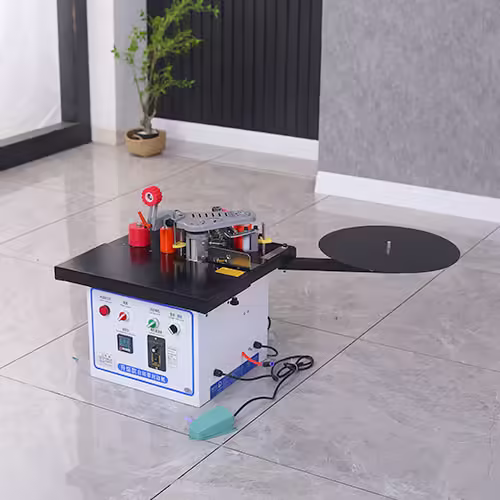

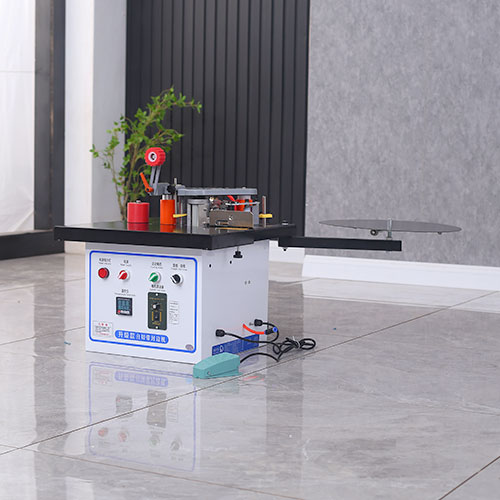

Mini Edge Banding Machine
Open full product pageThis Mini Edge Banding Machine, weighing approximately 22 kilograms, is compact and highly portable, making it easy to move and use in various work scenarios. It supports both curved and straight edging, catering to diverse edge – banding needs. With an independent switch, it enables easy operation, significantly saving time and labor during use. Additionally, it is equipped with a material support plate, a micro – switch, a pressing wheel, and a tape – cutting cylinder, all of which work together to ensure smooth and efficient edge – banding processes.
-
×

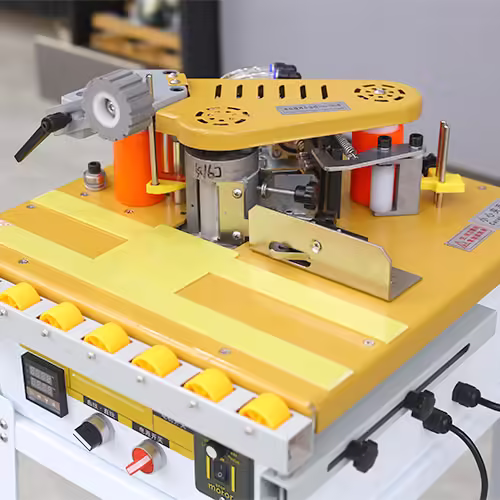

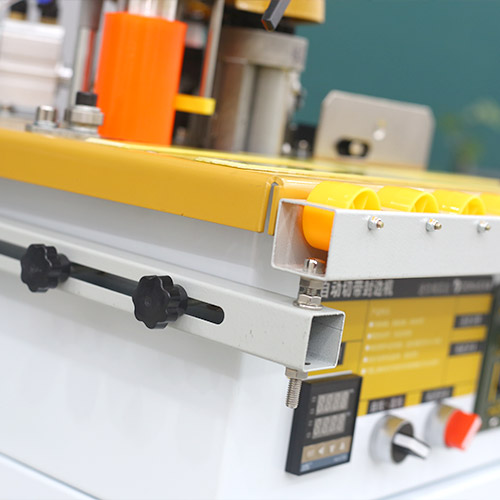

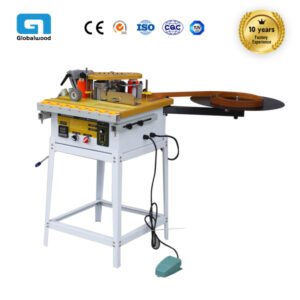

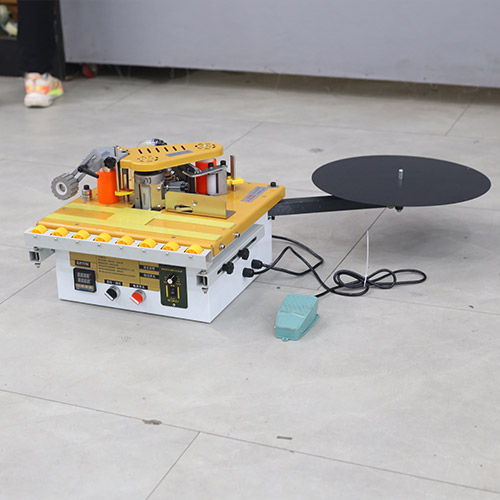

40 Compact Profile and Straight Edge Banding Machine
