This Advanced Straight-line Panel Saw is equipped with a high-power air-cooled spindle, enabling powerful cutting and rapid tool changes to meet various processing needs such as cutting, drilling, and grooving. It features a precise and efficient transmission system, along with a robust structure that effortlessly handles heavy-duty cutting tasks, ensuring smooth and burr-free cutting surfaces while extending tool life. Equipped with an advanced CNC system and an automatic lubrication system, it achieves precise automated processing while reducing manual intervention. Additionally, it offers high-precision positioning and a stable electrical system, meeting the demands of high-efficiency production.
Advanced Straight-line Panel Saw for Precision and Efficiency
| Advanced Straight-line Panel Saw | |||||
| Work schedule | Max 1300mm*2500/2800mm*200mm(x*y*z) | Screw | Taiwan TBI | ||
| Dimension | 2200*3500mm/3850*2300mmm(width*length*height) | Guide | Taiwan Dinghan 30 guide rail, original slider | ||
| No-load speed | X-axis | 50-90m/Min | Transmission | X-axis | 30 square rail 1.5M high precision ground helical gear reducer 8:1 |
| Y-axis | 50-90m/Min | Y-axis | 30 square rail 1.5M high precision ground helical gear reducer 8:1 | ||
| Z-axis | 20m/Min | Z-axis | 30 square rail high precision screw coupling direct connection | ||
| Maximum processing speed |
X-axis | 10-25m/Min | Rack | High precision ground rack | |
| Y-axis | 10-25m/Min | Electrical accessories |
Genuine Chint electrical parts | ||
| Z-axis | 12m/Min | Power wiring | Industrial CE wiring standards | ||
| Spindle motor | CC/HQD 9KW*1 air-cooled tool-changing spindle | Lubrication system |
Automatic central lubrication system | ||
| Spindle speed | 24000rpm/min | Positioning cylinder |
Fully automatic high precision pneumatic positioner | ||
| Control System | Taiwan Baoyuan (LNC) high-performance customized version (Taiwan new generation optional) |
Work surfacecylinder |

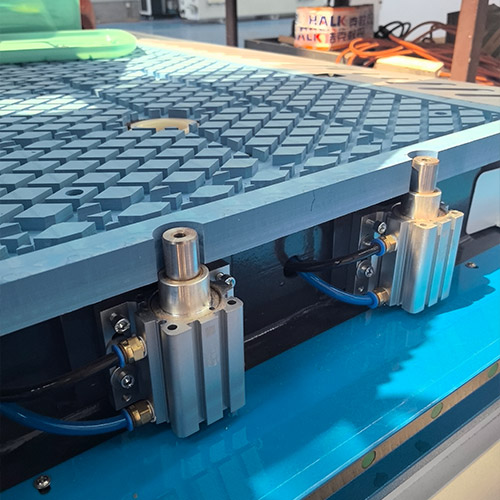

Vacuum adsorption table, small board will not move | ||
| Drive system | Invt High-torque Servo | Platform structure |
Platform steel frame square tube 100*100, side 150*250 | ||
| Frequency Converter | Fuling/Haipumont 11KW high performance inverter | Operating voltage |
AC380V | ||
| Reducer | Japan Xinbao reducer | Total Powe | ≈21.5Kw | ||
Product Overview
The Advanced Straight-line Panel Saw delivers high-speed precision cutting with superior structural stability. Equipped with a 9KW air-cooled spindle and automatic tool-changing system, it supports multiple processes such as cutting, drilling, and grooving.
This Advanced Straight-line Panel Saw features a Taiwan LNC control system, ensuring smooth operation, intelligent programming, and high positioning accuracy. Its automatic lubrication and vacuum adsorption table guarantee long-term reliability and smooth cutting performance.
Built for industrial-grade durability, this panel saw combines powerful output with precise motion control, making it an ideal solution for large-scale woodworking and furniture production lines.
Related Products
-
×

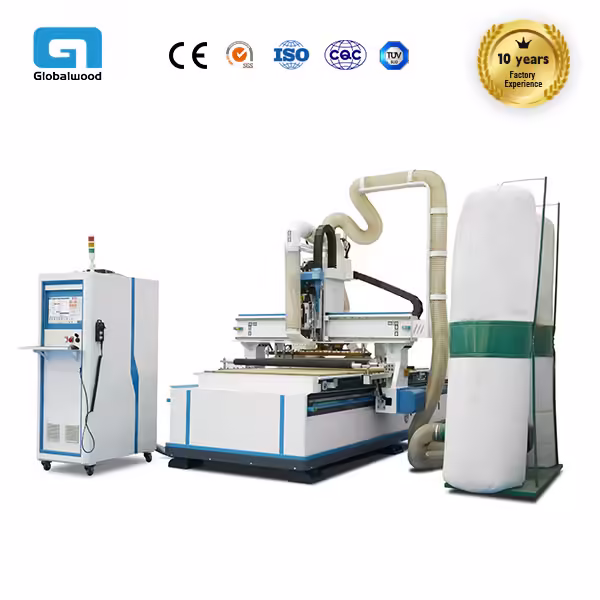

Standard Disk Tool Change Machining Center
Open full product pageIntroducing our high-performance Disk Tool Change Machining Center. With a working stroke of up to 1300mm x 2500/2800mm x 200mm and dimensions of 2200mm x 3500/3850mm x 2300mm, it offers rapid traverse speeds and high cutting rates. Equipped with a 9KW spindle motor, advanced control system, and precision components, it ensures efficient and precise machining. Ideal for various industrial applications.
-
×
High-Speed Four-Process Cutting Machine
Open full product pageThe High-Speed four-process cutting machine is a high-efficiency CNC cutting equipment specially designed for industries such as panel furniture, wooden doors, and display cabinets. Equipped with four automatically switching spindles, it can perform various processing functions including drilling, grooving, and cutting without manual tool changes, significantly improving production efficiency. With high precision and repeat positioning accuracy of ±0.05mm, it features user-friendly operation and an intelligent control system. Ideal for furniture manufacturing and cabinet production, it helps enterprises enhance efficiency and product quality.
-
×

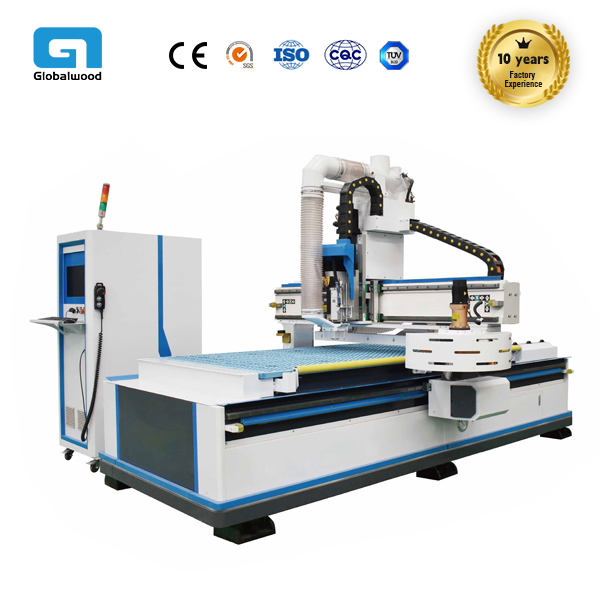

Disk Tool Change Machining Center
